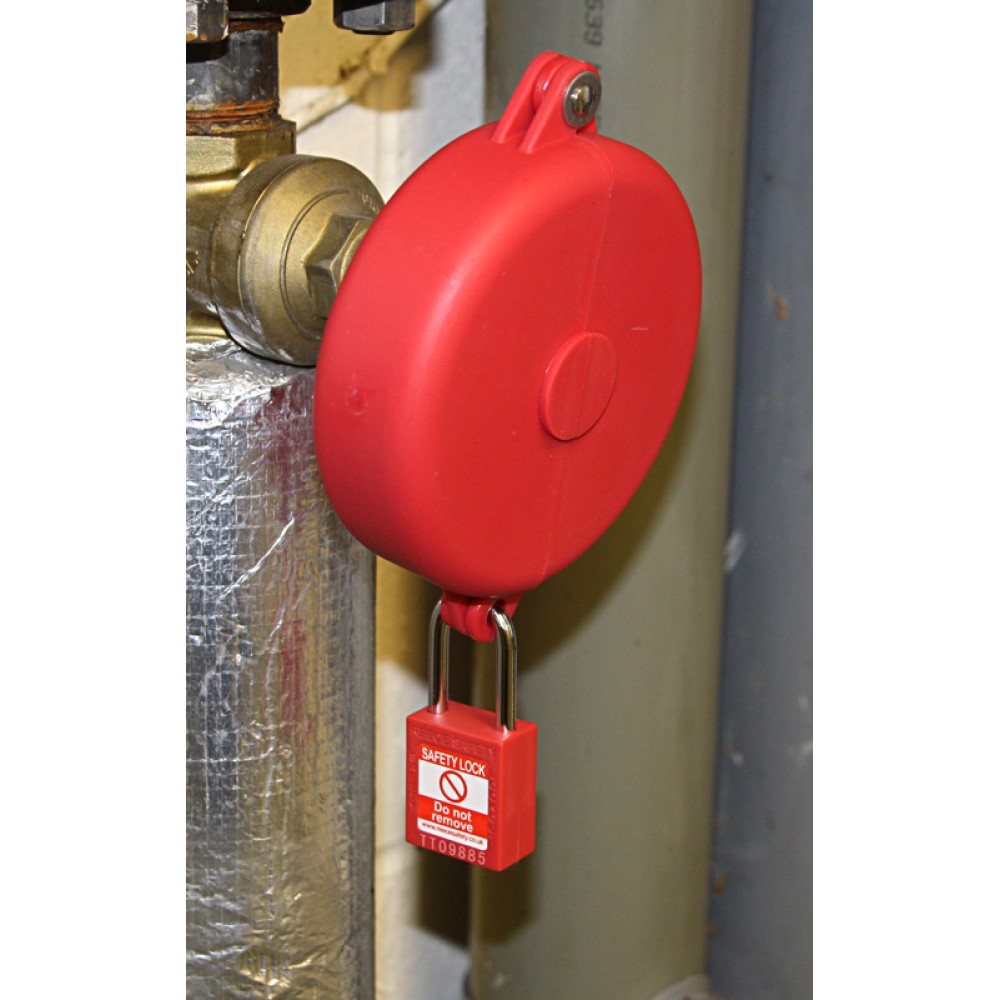

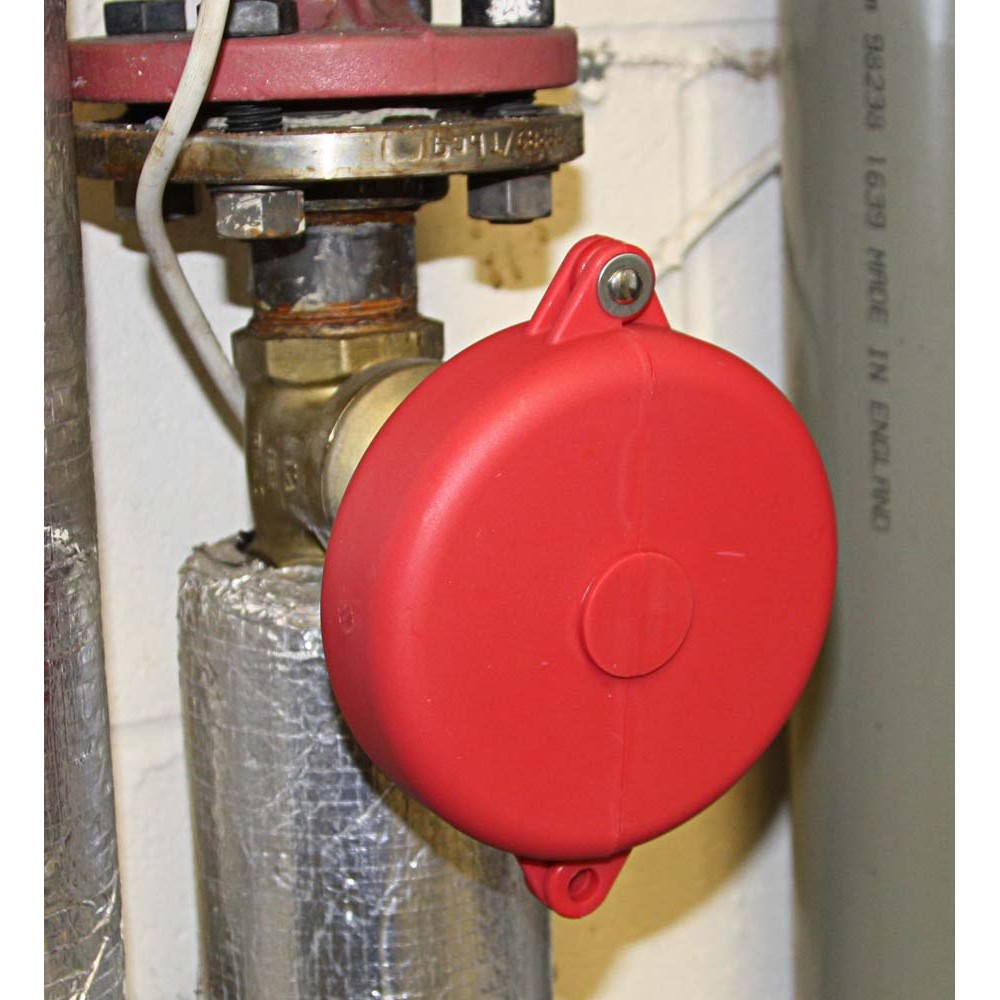

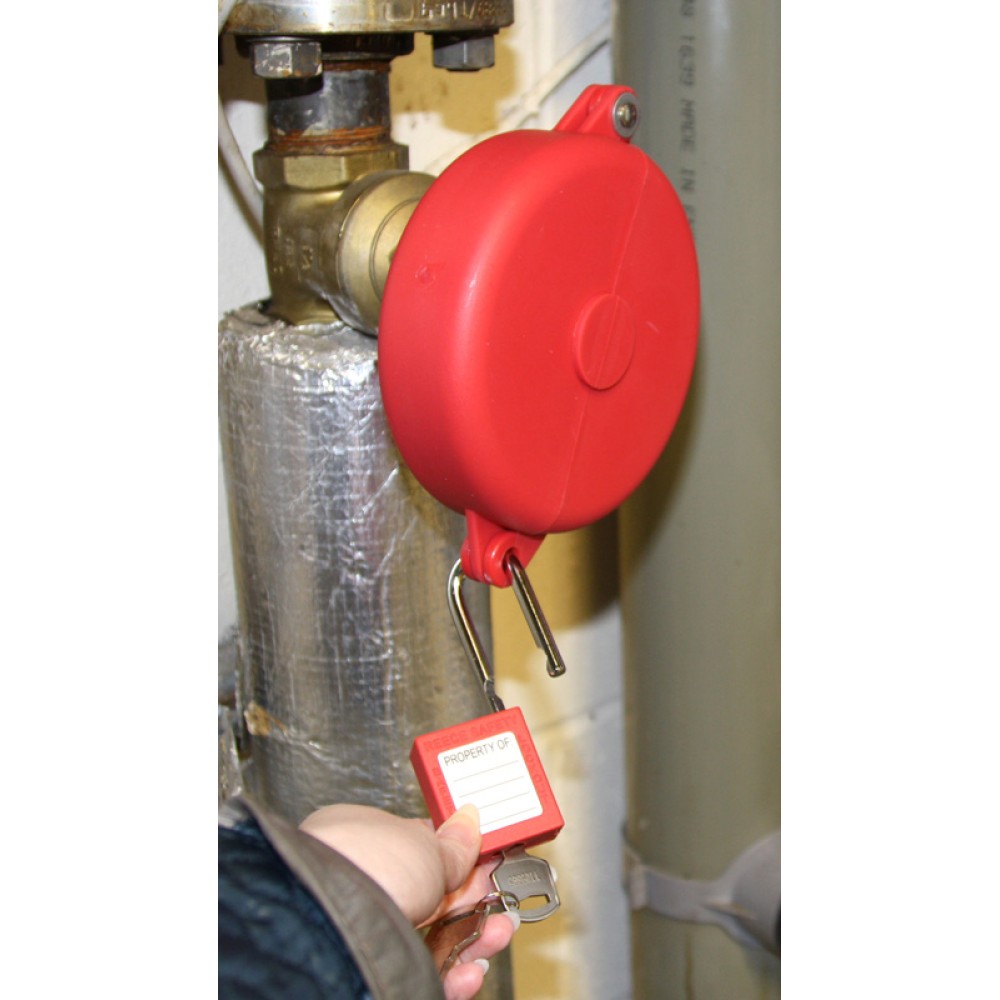

Gate valve covers are a simple, low cost, effective way to prevent unauthorized operation of valves. Valve covers consist of two flattened half moons that completely cover the valve hand wheel. Once locked, the cover rotates freely around the hand wheel preventing operation.

  • Made of strong polypropylene plastic
  • Highly resistant to cracking and abrasion
  • Resistant to extreme temperature changes
  • Fully dielectric
  • Available in 5 sizes to fit hand wheels 25mm (1”)(25mm) to 355mm (14”)

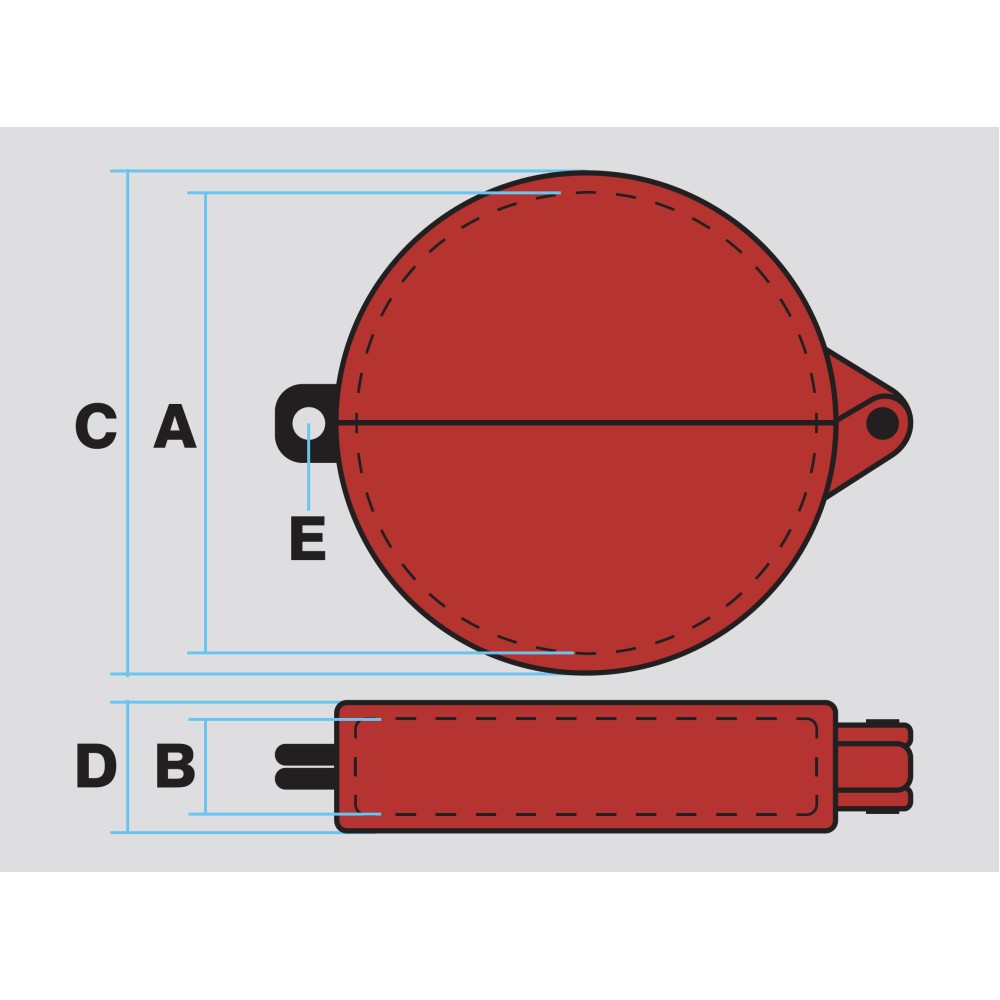

  • Code 53336: Fits Valve Handle Size: 25-70mm | (A) Inside Diameter: 70mm | (B) Inside Height: 32mm | (C) Outside Diameter: 76mm | (D) Outside Height: 38mm | (E) Lock Hole: 8mm

    Code 53337: Fits Valve Handle Size: 75-130mm | (A) Inside Diameter: 130mm | (B) Inside Height: 32mm | (C) Outside Diameter: 140mm | (D) Outside Height: 44mm | (E) Lock Hole: 9.5mm

    Code 53338: Fits Valve Handle Size: 130-170mm | (A) Inside Diameter: 170mm | (B) Inside Height: 38mm | (C) Outside Diameter: 177mm | (D) Outside Height: 50mm | (E) Lock Hole: 9.5mm

    Code 53339: Fits Valve Handle Size: 170-257mm | (A) Inside Diameter: 257mm | (B) Inside Height: 50mm | (C) Outside Diameter: 267mm | (D) Outside Height: 63mm | (E) Lock Hole: 9.5mm

    Code 53340: Fits Valve Handle Size: 257-355mm | (A) Inside Diameter: 355mm | (B) Inside Height: 63mm | (C) Outside Diameter: 368mm | (D) Outside Height: 73.8mm | (E) Lock Hole: 9.5mm
